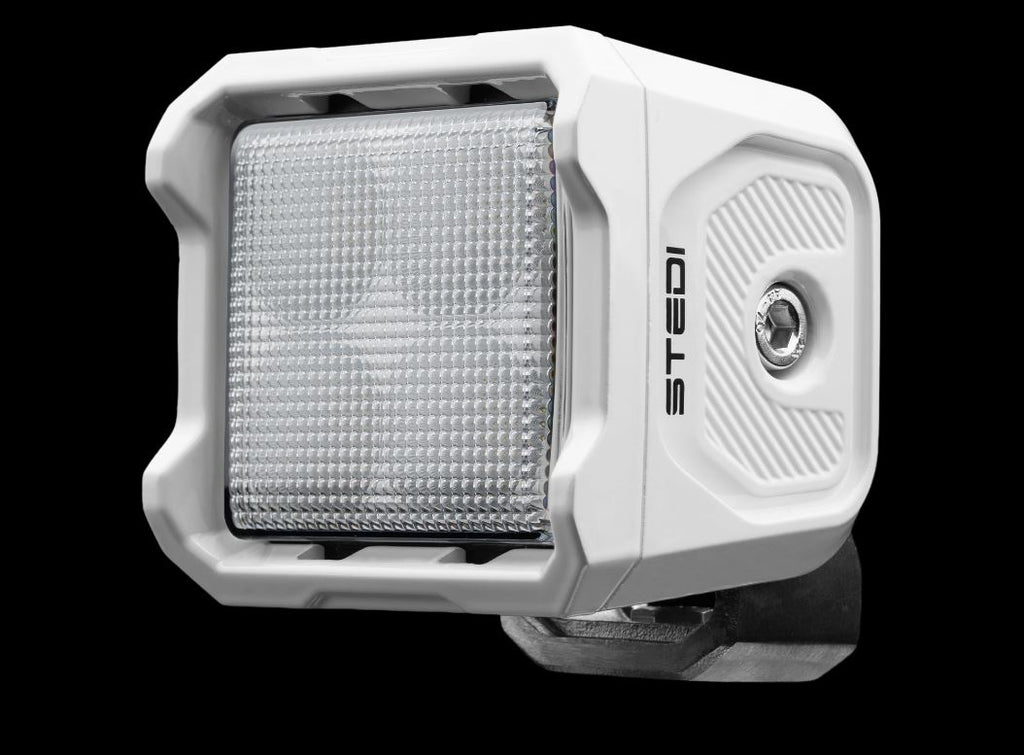

Stedi G4 Marine Ultra Flood Work Light

DESCRIPTION

Full Force.

Delivering a our widest, ultra-diffused light pattern reaching an incredible 80º of spread, the STEDI™ G4 Marine — Ultra-Flood is optimised to distribute light both laterally and vertically. Suitable applications include a broad range of usage where light spread and fullness is priority. Achieving the highest IP69K ingress protection and CISPR 25 C3 certification, the G4 is built to last with 316 stainless steel fasteners and bracket, tinned cabling, and heavy duty marine-grade powder coating.

Sea Beyond.

Engineered with advanced CREE XP-L2 LED technology, the G4 Marine — Ultra Flood produces a powerful, smooth light beam that prioritises diffusion, delivering an ultra flood-lit zone 37 metres wide and 42 metres long at 1 LUX — ensuring the critical near field is illuminated with a full, 5700K light.

A Force Of Nature.

The STEDI™ G Series delivers unmatched durability with an IP68 & IP69K rating for complete dust and waterproof protection and CISPR 25 C3 certification to prevent electromagnetic interference, ensuring peak performance even in the harshest environments.

LUX GRAPH

DIMENSIONS

THE NITTY GRITTY.

Feel the full force of the STEDI™ G4 Marine— Ultra-Flood. Delivering a our widest, ultra-diffused light pattern reaching an incredible 80º of spread, the G4 Marine — Ultra-Flood is optimised to distribute light both laterally and vertically, minimising any directional intensity. Suitable applications include a broad range of usage where light spread and fullness is priority. Achieving the highest IP68 & IP69K ingress protection and CISPR 25 C3 certification, the G4 is built to last with 316 stainless steel fasteners and bracket, tinned cabling, and heavy duty marine-grade powder coatingEngineered with advanced CREE XP-L2 LED technology, the G4 Marine — Ultra Flood produces a powerful, smooth light beam that prioritises diffusion, delivering an ultra flood-lit zone 37 metres wide and 42 metres long at 1 LUX — ensuring the critical near field is illuminated with a full, 5700K light. The colour temperature has been enhanced to deliver a brilliant white light while reducing glare and eye strain, ensuring you can focus on the task at hand without compromise. Pushed to the limit, the STEDI™ G Series sets a new standard in marine light durability. Punished through advanced vibration and shock testing, the entire G-Series achieves the highest possible IP68 & IP69K rating — guaranteeing that each light is completely dust-proof and waterproof even in high-pressure and temperature environments. The CISPR 25 C3 certification ensures electromagnetic interference is suppressed, protecting sensitive onboard receivers like AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. When it comes to durability, the G-Series is in a class of its own.

• 4x CREE XP-L2 LEDs
• IP68 & IP69K Rated
• CISPR 25 C3 Certified
• Shock Tested At 30Gs & Vibration Tested At 5Gs Of Force
• 1 LUX @ 81m Length
• 1 LUX @ 40m Width
• Stainless Steel Hardware & Bracket Included
• Tinned Cabling
• Isolated Earth
• Heavy Duty Marine-Grade AkzoNoble™ Powder Coating

TECH SPECS.
