DESCRIPTION
Full Force.

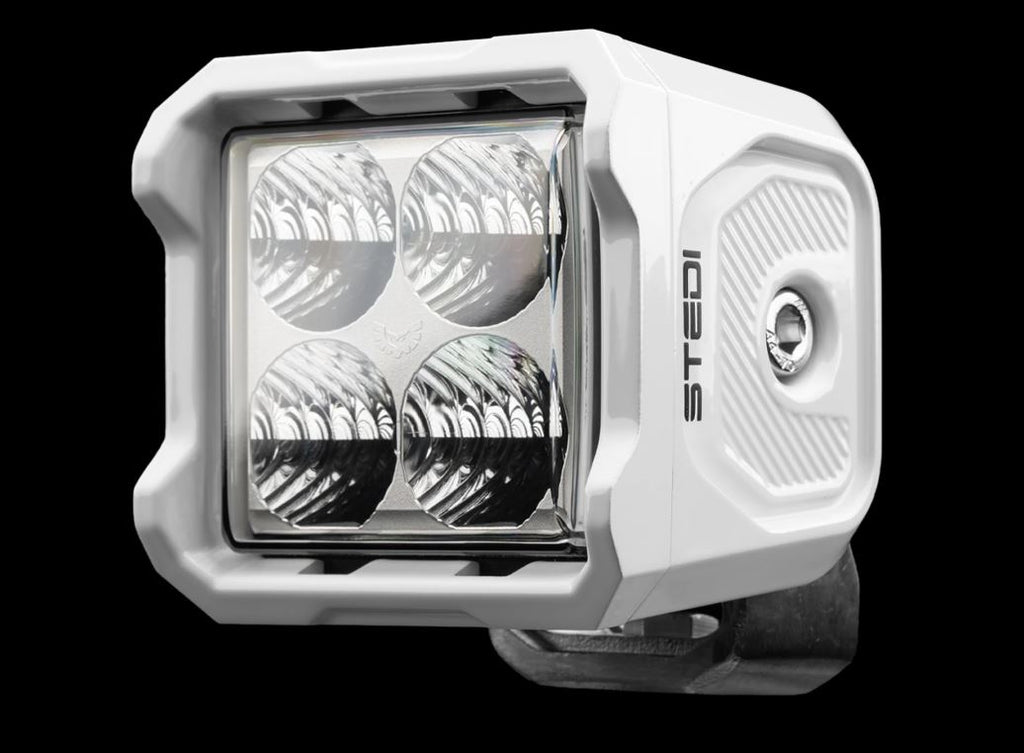

The G4 Marine — Hybrid is engineered to give you the best of both worlds without compromise. Producing a beam that is smooth and full in light distribution, it makes an ideal marine light for bow, gunwale, port/starboard and stern applications. Achieving the highest IP69K ingress protection and CISPR 25 C3 certification, the G4 is built to last with 316 stainless steel fasteners and bracket, tin cabling, and heavy duty marine-grade powder coating.
Sea Beyond.
Engineered with advanced CREE XP-L2 LED technology, the G4 Marine — Hybrid produces a powerful, smooth beam that reaches over 100 metres in length, combined with diffused light from the optimised reflector that radiates an immediate flood zone 33 metres wide — ensuring the critical near field is illuminated with a full, 5700K light.
A Force Of Nature.
The STEDI™ G Series delivers unmatched durability with an IP68 & IP69K rating for complete dust and waterproof protection and CISPR 25 C3 certification to prevent electromagnetic interference, ensuring peak performance even in the harshest environments.
LUX GRAPH.
DIMENSIONS
Feel the full force of the STEDI™ G4 Marine — Hybrid. Delivering a powerful combination of both spot and flood light output, the G4 — Marine Hybrid is engineered to give you the best of both worlds without compromise. Producing a homogeneous beam that is smooth and full in light distribution, it makes an ideal marine light for bow, gunwale, port/starboard and stern applications. Achieving the highest IP68 & IP69K ingress protection and CISPR 25 C3 certification, the G4 is built to last with 316 stainless steel fasteners and bracket, tin cabling, and heavy duty marine-grade powder coating. Engineered with advanced CREE XP-L2 LED technology, the G4 Marine — Hybrid produces a powerful, smooth beam that reaches over 160 metres in length, combined with diffused light from the optimised reflector that radiates an immediate flood zone 50 metres wide — ensuring the critical near field is illuminated with a full, 5700K light. The colour temperature has been enhanced to deliver a brilliant white light while reducing glare and eye strain, ensuring you can focus on the task at hand without compromise. Pushed to the limit, the STEDI™ G Series sets a new standard in marine light durability. Punished through advanced vibration and shock testing, the entire G-Series achieves the highest possible IP68 & IP69K rating — guaranteeing that each light is completely dust-proof and waterproof even in high-pressure and temperature environments. The CISPR 25 C3 certification ensures electromagnetic interference is suppressed, protecting sensitive onboard receivers like AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. When it comes to durability, the G-Series is in a class of its own.
- 4x CREE XP-L2 LEDs
- IP68 & IP69K Rated
- CISPR 25 C3 Certified
- Shock Tested At 30Gs & Vibration Tested At 5Gs Of Force
- 1 LUX @ 160m Length
- 1 LUX @ 50m Width
- STEDI™ Cover Included
- Stainless Steel Hardware & Bracket Included
- Tinned Cabling
- Isolated Earth
- Heavy Duty Marine-Grade AkzoNoble™ Powder Coating
| LED POWER OUTPUT |
4 x 10w LEDs |
| LUMENS RAW |
4000LM |
| LUMENS TESTED |
3000LM |
| OPERATING VOLTAGE |
12v & 24v Compatibility |
| IP RATING |
IP68 & IP69K |
| CISPR RATING |
R25 C3 |
| LED |
CREE XP-L2 |
| 1 LUX (METRES) |
160m |
| COLOUR TEMPERATURE (CCT) |
5700K / 620nm |
| MATERIAL |
Die Cast Aluminium Housing |
| LENS |
Polycarbonate |
| BOLTS AND FITTINGS |
Included |
| BEAM TYPE |
Flood |
| LIFE SPAN |
50,000 Hours |
| AMP DRAW |
3.2A @ 13.5v |
| WEIGHT |
1.0kg |
What's Included
- 1 x STEDI™ G4 Marine Hybrid Light
- 1 x STEDI™ White Cover
- 1 x Stainless Steel Hardware
- 1 x Stainless Steel Bracket
- 1 x 2 Pin Male Connector
- 24 Month Warranty
