Description
LIGHTBAR DETAILS
#ST1K
CERTIFIED E-MARK COMPLIANT
Our new ST1K series is ECE approved, making it road-legal in Europe and New Zealand.

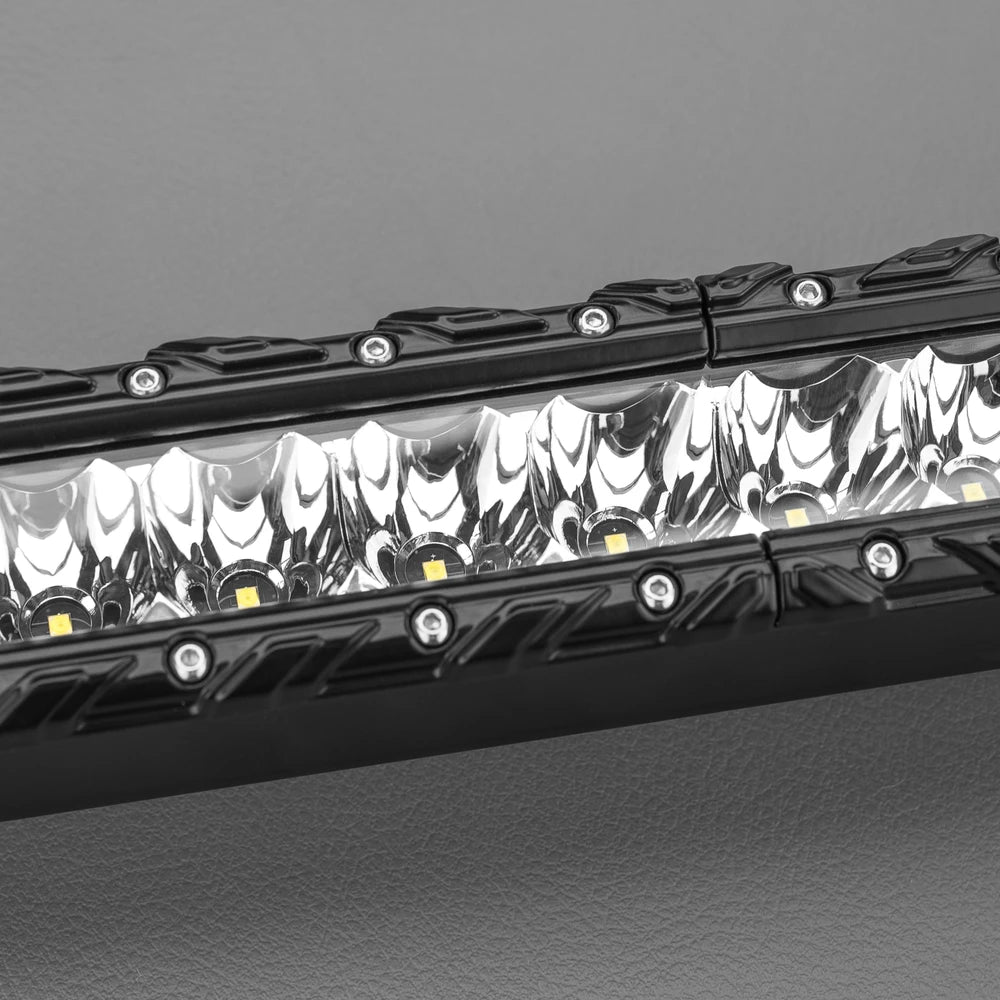

Featuring our innovative hooded reflector design with rear-facing LEDs enables unprecedented beam control - not possible with more conventional optics. The 20 LED is ideal for stealth installations – think lower grill, behind the upper grille, or the STEDI number plate light mounting bracket.
HIGH-END DESIGN MEETS HIGH PERFORMANCE
The multi-faceted hooded reflectors distribute a wide beam in the mid-field, with no wasted light on treetops. The wide-horizontal beam patterns significantly reduce glare caused by road signs. The beam pattern makes it an ideal companion to the vehicle's main beam, filling in the road shoulders and adding beam distance over and above your car's main beam, ensuring you arrive at your destination in total comfort.
#ST3K

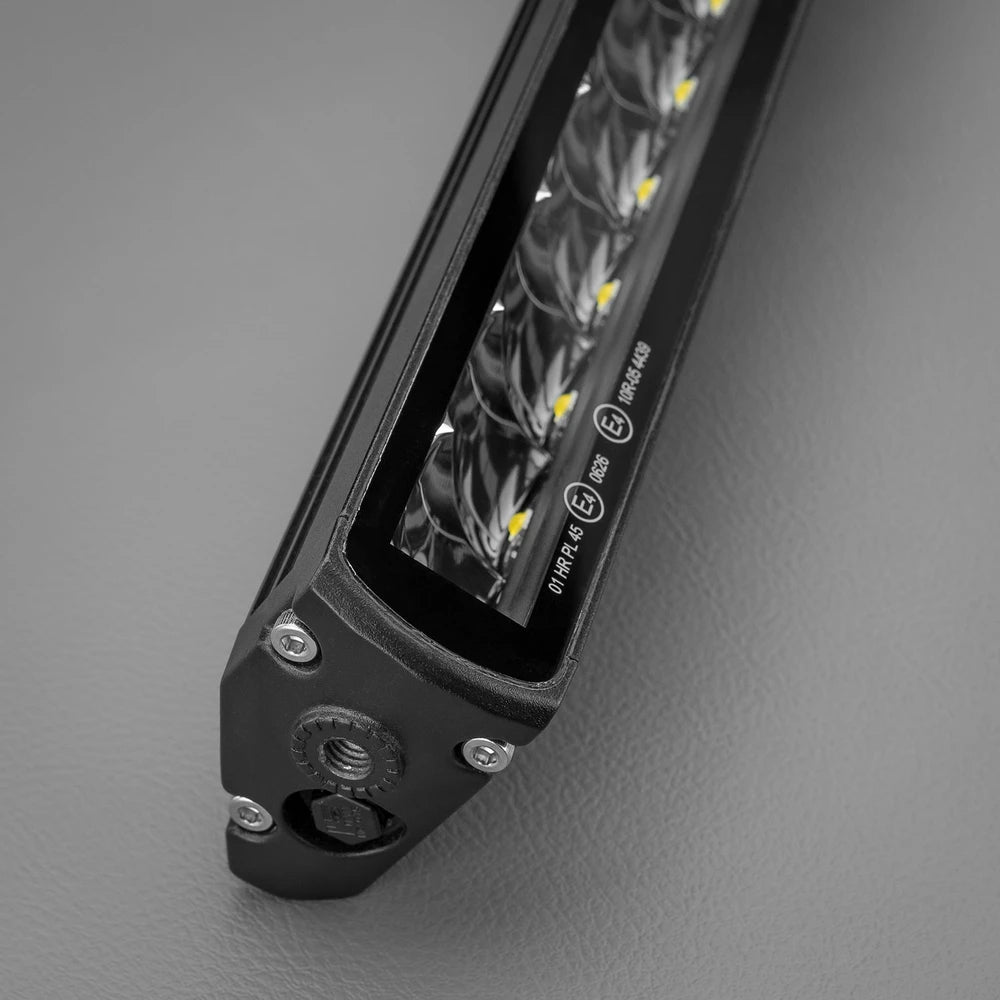

THE DEFINITION OF CALIBRE.
TIMELESS DESIGN.
#Sport Plus Single Row

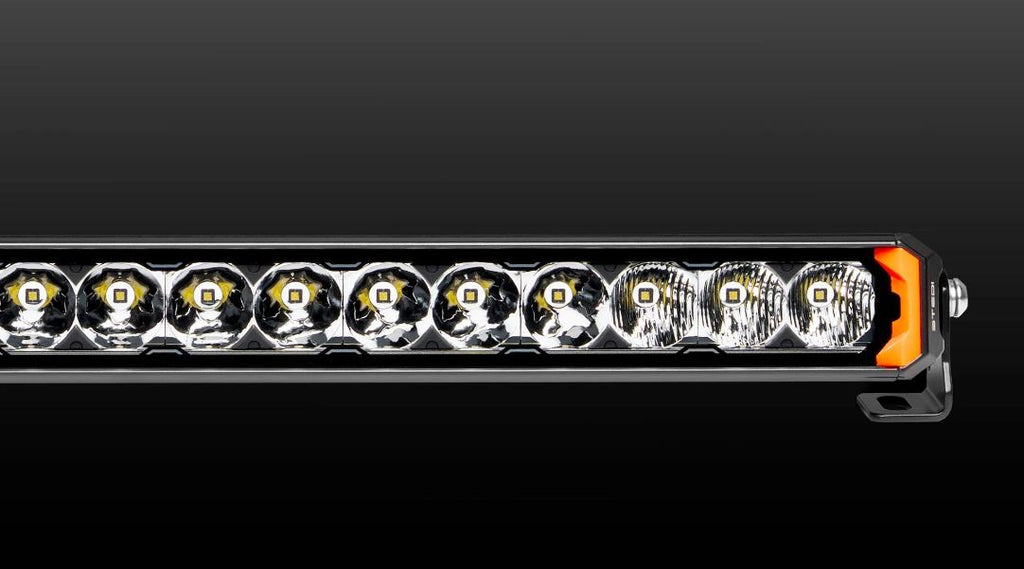

BEAUTY & A BEAST
Sport Plus Single Row has larger cones and reflectors combine to create a wider optical canvas for 16 high end OSRAM LEDs® — producing a longer and wider range of illumination, lighting 519 metres at 1 Lux. The colour temp is optimised to 5000k, improving visual contrast, minimising eye fatigue and blending harmoniously with STEDI’s range of spotlights.
LIGHTBAR VIDEO
#ST1K
#ST3K
THE NERDY TECH STUFF
#ST1K
DETAILS
- 20 x 5W OSRAM LEDs
- RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment
- IP68 - Submersible to 3m
- Environmentally sealed Deutsch DT-2 connectors
- Innovative hooded optics
- Driving Beam E mark compliant beam.
- Heavy Duty Adjustable Bottom Mounts & Side bracket included.
- Reverse Polarity Protected Circuit (RPPC)
- Electronic Thermal Management
- Built-in Voltage Surge Protection
INCLUDES: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggyback adaptors)
| LED MANUFACTURER | OSRAM |
| LED COUNT | 20 |
| VOLTAGE | 9V - 32V |
| CURRENT DRAW (AMPERES) | 8.0a @13.6v |
| LENS MATERIAL | OPTICAL GRADE, MAKROLON |
| RAW LUMENS | 5,920Lm |
| PEAK INTENSITY (CANDELA) | 219,792cd |
| HOUSING MATERIAL | A360.0 Cast face plate, extruded Aluminum heat sink |
| LUMEN MAINTENANCE | 50,000 (LM80) |
| INGRESS PROTECTION | IP68 |
| OPERATING TEMP | -40˚C ~ +150˚C |
| WEIGHT | 1.290kg |
#ST3K
DETAILS
MARKET-LEADING PERFORMANCE.
- ST3K-20L features 20 of OSRAM’s® finest OSLON® LED, selected for unrivalled efficiency.
- 4 Flood + 12 Spot + 4 Flood reflector distribution forms a remarkable beam that pushes the wide beam out at 50° and spot beam at 5.8° all the way to staggering 1 lux @ 493m
- True White 5700K Colour temperature offers stunning clarity and definition.
- Our Pure-Drive™ circuit design allows 97% of input power to go directly to LEDs.
BUILT TO WITHSTAND THE RELENTLESS PUNISHMENT OF THE DEEP AUSTRALIAN OUTBACK.
- Finished in 100% Polyester UV and abrasion-resistant powder coat ensures that our bars will never discolour.
- Pressure Equalization vent | Protects against water ingress, dust & contaminants.
- IP68 | Dust & Particle tight + Water-proof up to 3 meters!
- Environmentally sealed Deutsch ® DT-2 connector.
- Protected against EMC and RFI.
- Ultra-Low 51mm profile without the side brackets & 63mm with side brackets!
Includes our Easy-Fit High Beam Plug and Play Wiring Harness which includes H4 and HB3 Adapters making for an easy connection to the high beam.
Backed by a 5-Year Replacement Warranty.
SPECIFICATIONS
| LED | 20 x Osram Oslon White |
| EFFECTIVE LUMEN | 4,100Lm |
| PEAK INTENSITY | 243,200cd |
| OPERATING VOLTAGE | 10-30V DC |
| IP RATING | IP68 |
| CURRENT DRAW | 4.3A @ 13.5v |
| COLOUR TEMPERATURE (CCT) | 5700 Kelvin |
| HOUSING MATERIAL | Aluminium Extrusion & Cast |
| LENS | GE™ Lexan |
| MOUNTING BRACKET | Powder Coated 3mm Stainless Steel |
| BOLTS AND FITTINGS | 3 Series Stainless Steel |
| BEAM TYPE | Flood Spot Combo |
| LIFE SPAN | 50,000 Hours |
| WEIGHT | 1.855 |
| OPERATING ENVIRONMENT | -40 - +50° Celsius |
#Sport Plus Single Row
DETAILS
- Features Larger cones and reflectors combine to create a wider optical canvas for 16 high end OSRAM LEDs® — producing a longer and wider range of illumination, lighting 519 metres at 1 Lux
- The colour temp is optimised to 5000k
- No exposed bolts, a minimalist design finished in jet black powder coating
- Included with the Type-X Sport Plus Light Bar light bar are powder coated 304 stainless steel brackets
- IP68-rated waterproof LED light bar features a hardened polycarbonate lens for maximum impact resistance and long-term durability
Tech Specs
| LED Type | OSRAM GW LEDs |
| LUMENS (Raw) | 5400 |
| LUMENS (Tested) | 3664 |
| 1 Lux (Metres) | 519 |
| LED Count | 16 |
| Beam Pattern | Combination (3 Flood + 10 Spot + 3 Flood) |
| IP RATING | IP68 |
| Colour Temp (CCT) | 5000K |
| Voltage Compatability | 10-30V |
| Power Draw (Each) | 48W |
| Amp Draw | 4.0A@12V 2.0A@24V |
| Operating Temperature | -40°C to 60C |
| Material | Extruded Aluminium housing |
| Finish Type | Powdercoat |
| Lens Type | Clear |
| Mounting Brackets Detail | Stainless Bracket |
| Bolts & Fitting Detail | Included |
| Life Span | 50,000 Hours |
| Warranty | 5 Years |
LUX GRAPH
#ST1K
#ST3K
#Sport Plus Single Row
DIMENSIONS
#ST1K
#ST3K
#Sport Plus Single Row
WHAT'S IN THE BOX
#ST1K
- 21.5" ST1K E-marked Single Row LED Light Bar
- Ford Piggyback Adapter
- Ranger Raptor Inner Grill Bracket
- Standard Single Plug Wiring Kit
#ST3K
- 21.5" ST3K Slim Single Row LED Light Bar
- Ford Piggyback Adapter
- Ranger Raptor Inner Grill Bracket
- Standard Single Plug Wiring Kit
#Sport Plus Single Row
- 1x Sport Plus single row light bar (Combo)
- 1x Protective STEDI™ blackout cover
- 1x Powder coated 304 stainless steel side bracket (Set)
- 1x Mounting hardware (Set)
- 1x STEDI™ cover key tool
- 1x Orange trims (Set)
- 1x Grey trims (Set)1x STEDI high beam wiring harness with H4&HB3 adaptor
- 5x Cable Ties
- 2x Channel mounts + hardware
INSTALLATION GUIDE
See HERE for more information on how to fit your new Raptor Grill Lightbar.
**Please note, this does not suit the Next-Gen Raptor**
