Description
DESCCRIPTION
A Master Of All.
Australian Design, Universal Fitment.

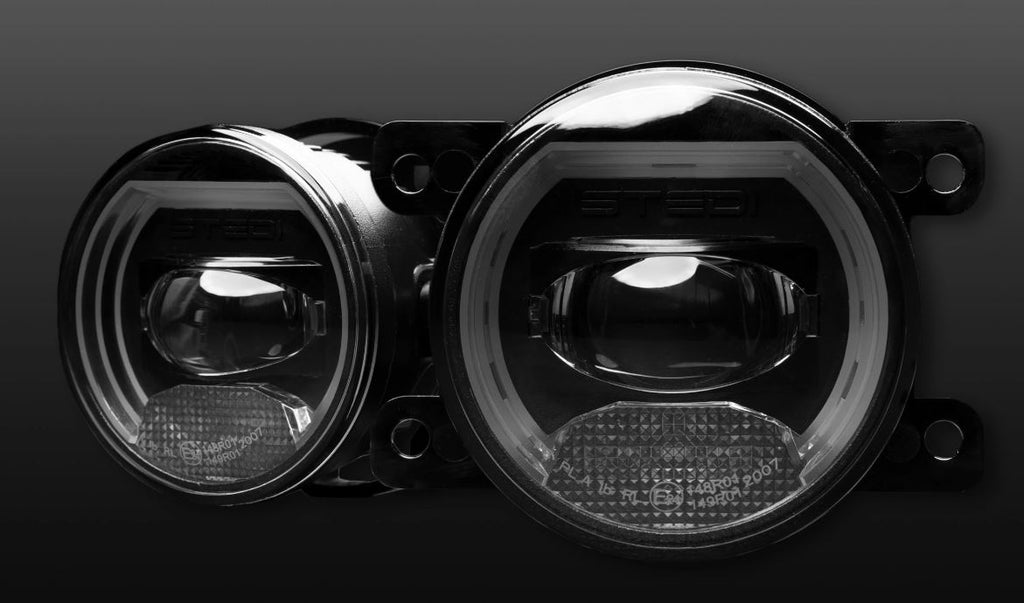

Developed in Melbourne, built to take on the world - the STEDI™ DRL Universal LED Fog Light features a universal light unit with type A, B and C bracket options to ensure a seamless OEM style fit to your vehicle. They are a direct fit that uses your vehicle’s factory mounting points in the front bumper — simply use the STEDI™ vehicle selector to ensure you’re selecting the compatible bracket for your vehicle.
ADR Compliant.
LUX GRAPH
DIMENSIONS
INSTALLATION GUIDE
THE NITTY GRITTY.
STEDI’s DRL LED Fog Lights with integrated indicator and parker light function are a high-end, premium solution for those looking for upgraded fog light performance in an OEM-like fit and finish.
The projector lens optic distributes a very flat and extremely wide pattern which is DOT and ECE standard compliant for road use.
Once installed we recommend that the beam is adjusted to ensure that it cuts off no higher than 50cm from the ground, with the car 25m away from a wall.
The STEDI™ Universal Fog Lights with DRL include mounting brackets that are compatible with all vehicles that feature Type A factory fog light housing.
Please Note:
Due to the assembly process, during initial operation a fogging may be visible. This is normal and should resolve within the first week as the light heats up and any moisture is released through the breather in the lights. If you have concerns regarding this, or if this persists for an extended time, please contact us at [email protected] for further assistance.
COMPATIBLE VEHICLES:
CITROEN
- DS5: 2012 - 2017
- DS4: 2011
- BERLINGO: 2012 - 2017
- C-CROSSER: 2007 - 2017
- C4: 2004 -2009
- C4 PICASSO: 2006 - 2007
- C4 PICASSO: 2011
- C5: 2001 - 2007
- C-QUATRE: 2009
FORD
- C-MAX: 2010 - 2017
- ECOSPORT: 2013 - 2017
- EXPLORER: 2011 - 2015
- FIESTA: WQ - WP 1/2004 - 8/2008 including XR4
- FOCUS: LT 5/2007 - 3/2009 Fits XXR5 from 2/2008 to 12/2011
- FREESTYLE: 2005 - 2007
- FALCON FG: Series 2/2008 - 2013 (XT, XR6, XR8, G6 & G6E)
- TERRITORY SZ: 6/2011 - 2013 (Excluding Titanium Model)
- FUSION: 2014 - 2017
- MUSTANG: 2015 - 2017
- RANGER: PX1 + PX2 2012 - Current (Not including Wildtrak PX2)
- TAURUS X: 2008 - 2009
- TRANSIT: 2/2006 onwards
- TRANSIT CONNECT: 2011 - 2013
HOLDEN
- COMMODORE: VE 6/2006 to 9/2010 (Series 1)
HONDA
- CITY: 2014 - 2016
- CR-V: 2012 - 2014
- CR-Z: 2013 - 2015
- JAZZ: 2014 - 2017
INFINITI
- EX35: 2008 - 2012
- EX37: 2013 - 2017
- FX35: 2006 - 2012
- FX45: 2006 - 2008
- FX37: 2013 - 2017
- FX50: 2009 - 2011
- G25: 2011 - 2012
- G37: 2009 -2013
- M35: 2012
- M37: 2011 - 2012
- M56: 2012
- QX56: 2011 - 2012
- Q70: 2014 - 2017
- QX70: 2014 - 2017
JAGUAR
- X-TYPE: 2004
- S-TYPE: 2005 - 2009
LAND ROVER
- FREELANDER 2: 2007
- DISCOVERY 4
MAZDA
- BT-50: 2012 - present
MERCEDES BENZ
- CITAN W415: 2012 - 2017
MITSUBISHI
- ASX: 2010 - 2017
- MIRAGE: 2013 - 2017
- OUTLANDER: 2005 - 2007
- OUTLANDER: 2010 - 2011
- OUTLANDER: 2012 - 2017
- PAJERO: NS / NT 7/2006 - 9/2011
- PAJERO SPORT 2015 - Current
- TRITON: 2010 - present
NISSAN
- CUBE: 2009 - 2014
- JUKE: 2010 - 2014
- MURANO: 2008 - 2014
- NV200: 2010 - 2017
- PATROL: 2004 - 2009
- PATROL: 2010 - 2017
- QASHQAI: 2014 - 2017
- TIIDA: 2006 - 2017
- LEAF: 2011 - 2017
- NAVARA D40: 2010 - 2013
- PATHFINDER: 2004 - 2012
OPEL
- AGILA: 2008
- ASTRA G: 1998 - 2003
- ASTRA H: 2004 - 2009
- VECTRA: 2005 - 2008
PEUGEOT
- 4007: 2007 - 2017
- 207: 2006 - 2008
- 301: 2013
- 307: 2005 - 2006
- 407: 2005 - 2008
PORSCHE
- CAYENNE: 2011 - 2014
RENAULT
- LATITUDE: 2011
- CAPTUR: 2013 - 2017
- LOGAN: 2008
- MEGANE: 2002 - 2009
SUBARU
- XV: 2011 - 2017
- BRZ: 2012 - 2014
- Forester: 2013 - 2014
- Liberty: 2014 - 2021
- Outback: 2010 - 2012
- Impreza (not WRX/STi, and requires H16 adapter) 2010 - 2012
- WRX/STi: 2012 - 2013
- WRX/STi: 2015 - 2019
SUZUKI
- ALTO: 2008 - 2017
- A-STAR: 2009 - 2017
- ALIVIO: 2014 - 2017
- GRAND VITARA: 2005 - 2017
- SPLASH: 2007 - 2017
- SWIFT: 2006 - 2017
- SX4: 2008 - 2017
- VITARA: 2006 - 2017
- JIMNY: 2000 - 2018 (Third Generation)
TOYOTA
- FT 86: 2012 - 2017
- GT 86: 2012 - 2017
- SCION FRS: 2012 - 2017
TECH SPECS.
| Length (mm) | 115 |
| Width (mm) | 93 |
| Height (mm) | 80.8 |
| Weight (kg) | 1.05 |
| LED | High Intensity W1860TM2 |
| Beam Pattern | Fog Beam |
| Tested Lumen (Single) | 730 |
| Tested Lumen (Pair) | 1460 |
| Ingress Protection | IP68 |
| Colour Temperature | 5000K |
| 1 LUX (Meters) | 104 |
| Candela | 11000 |
| Amp Draw | [email protected] |
| Power Draw | [email protected] |
| Colour Temp (CCT) | 5000K |
| Voltage Compatibility | 10-36V |
| Operating Temperature | |
| Material/finishing | Cast Aluminium |
| Beam Pattern | DRL |
| Colour Temperature | White |
| Amp Draw | [email protected] |
| Voltage Compatibility | 10-36V |
| Beam Pattern | Position List (Parker) |
| Colour Temperature | White |
| Amp Draw | [email protected] |
| Voltage Compatibility | 10-36V |
| Beam Pattern | Indicator (Turn Signal) |
| Colour Temperature | Amber |
| Amp Draw | [email protected] |
| Voltage Compatibility | 10-36V |
WHAT'S INCLUDED.
- 2 x Fog Lights with Bracket Assembled
- Mounting Hardware (M6 x 22mm Hex Head 316 Stainless Steel Screws x 8)
- 2 x H11 Connectors
- 24 Month Warranty
