DESCRIPTION
Full Force.

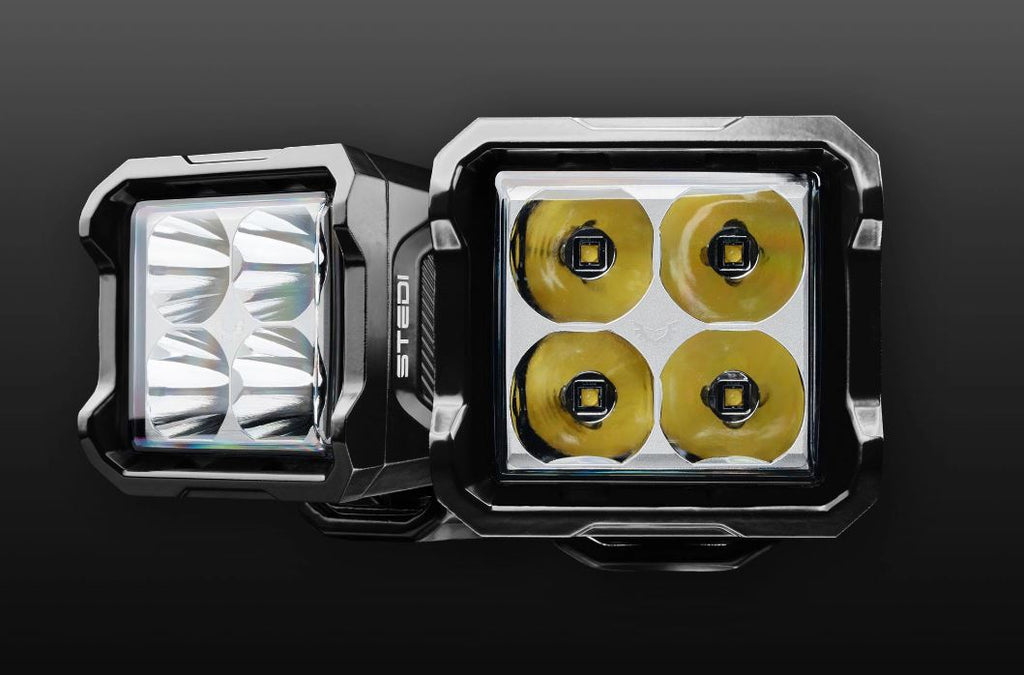

Delivering a powerful concentration of light optimised for beam distance and intensity, the G4 — Spot is a multipurpose auxiliary light that is both IP69K and CISPR 25 C3 rated. Flexible mounting options ensure suitability for a range of applications — from worksite and agricultural uses, to front facing motorcycle and ATV lighting.

Blinding Performance.
Engineered with advanced CREE XP-L2 LED technology, the G4 — Spot produces a powerful, smooth light beam that reaches over 235 metres in length, while the optimised reflector radiates an immediate zone of 28 metres — ensuring the critical near field is illuminated with a full, 5700K light.

A Force Of Nature.
The STEDI™ G Series delivers unmatched durability with an IP69K rating for complete dust and waterproof protection and CISPR 25 C3 certification to prevent electromagnetic interference, ensuring peak performance even in the harshest environments.

LUX GRAPH

DIMENSIONS

THE NITTY GRITTY.
Feel the full force of the STEDI™ G4 — Spot. Delivering a powerful concentration of light optimised for beam distance and intensity, the G4 — Spot is a multipurpose auxiliary light that is both IP69K and CISPR 25 C3 rated. Flexible mounting options ensure suitability for a range of applications — from worksite and agricultural uses, to front facing motorcycle and ATV lighting.??Engineered with advanced CREE XP-L2 LED technology, the G4 — Spot produces a powerful, smooth light beam that reaches over 235 metres in length, while the optimised reflector radiates an immediate zone of 28 metres — ensuring the critical near field is illuminated with a full, 5700K light. The colour temperature has been enhanced to deliver a brilliant white light while reducing glare and eye strain, ensuring you can focus on the task at hand without compromise. ??Pushed to the limit, the STEDI™ G Series sets a new standard in work and task light durability. Punished through advanced vibration and shock testing, the entire G-Series achieves the highest possible IP69K rating — guaranteeing that each light is completely dust-proof and waterproof even in high-pressure and temperature environments. The CISPR 25 C3 certification ensures electromagnetic interference is suppressed, protecting sensitive onboard receivers like AM/FM radio, UHF radio, GPS, mobile communication, and Wi-Fi. When it comes to durability, the G-Series is in a class of its own.
- 4x CREE XP-L2 LEDs
- IP69K Rated
- CISPR 25 C3 Certified
- Shock tested at over 30Gs of Force & Vibration tested at over 5Gs of force for over 30 hours over 3 axis of motion
- 1 LUX @ 235m Length
- 1 LUX @ 28m Width
- STEDI™ Cover Included
- Stainless Steel Hardware & Bracket Included
TECH SPECS.
| LED POWER OUTPUT | 4 x 10w LEDs |
| LUMENS RAW | 4000LM |
| LUMENS TESTED | 3000LM |
| OPERATING VOLTAGE | 12v & 24v Compatibility |
| IP RATING | IP69K |
| CISPR RATING | R25 C3 |
| LED | CREE XP-L2 |
| 1 LUX (METRES) | 235m |
| COLOUR TEMPERATURE (CCT) | 5700K |
| MATERIAL | Die Cast Aluminium Housing |
| LENS | Polycarbonate |
| BOLTS AND FITTINGS | Included |
| BEAM TYPE | Spot |
| LIFE SPAN | 50,000 Hours |
| AMP DRAW | 3.2A @ 13.5v |
| WEIGHT | 1.0kg |
WHAT'S INCLUDED
- 1 x STEDI™ G4 Spot Light
- 1 x STEDI™ Black Cover
- 1 x Stainless Steel Hardware
- 1 x Stainless Steel Bracket
